Rhythm game using AudioAnalyzer (Part 3)

This is the last part of this tutorial series that explains how to create a simple rhythm game. Here we can see the implementation details of the game actor and their components.

Design and main Level
User interface widgets
Game Actor

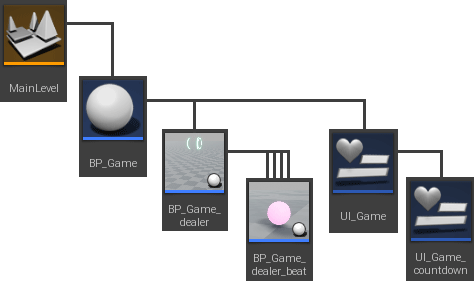

game_structure

We have 3 blueprint actors. The first one (BP_Game) is the actor that will be added to the Level. This blueprint contain the user interface and an instance of other actor blueprint (BP_Game_dealer), this actor will control the spawn of the beat spheres (BP_Game_dealer_beat)

BP_Game viewport

The BP_Game_dealer is added as a Child Actor component of BP_Game. To be able to call the functions of our dealer class we need to obtain the Child Actor and do a cast to BP_Game_Dealer

dealer_sat
SpawnNewBeat call from the BP_Game actor

Here we have a list with the functions and variables of our game actor. We can see in detail some of the more interesting of variables.

BP_game_variables
BP_Game functions and variables

Player and Tracker are only references to the objects contained in the Game Instance, only to avoid the casting on each access to this variables. UI_Game is the user interface created in the previous tutorial, we can construct and show it on this event.

game_beginplay

We can initialize both players here too, and the beat tracking analyzer. We want to do only a beat tracking of the 0-100Hz frequency band, so we need to create a 2D array with this bounds as input of that node.

initialize_audio_analyzer

The basic idea is to generate the beat sphere few seconds ahead it sound by the speakers, so the player can see how the sphere travel across the screen until they reach the center and the song of the speaker reach the beat in the song in that exact moment.

game_diagram

So we have 2 important variables, the delay between the tracker and the player playback and the distance between the spawn point and the player button. Both variables determines the velocity of the movement of the beat spheres.

    \[ Beat\_sphere\_velocity = \frac{Spawn\_distance}{Player\_delay} \]

When the game start and the countdown reach zero we need to call both Play nodes with a Delay of 2 seconds.

start_playback_event

We are going to use Event Tick cascade, instead of using a different event tick in each of the 3 actor class and synchronize all using more variables. Using this method we only need to pause the BP_Game and all the child actor will stop too.

event_tick_cascade
game_event_tick
BP_Game Event Tick

The Delta time must be shared with all the actor components, it is very important to obtain a synchronized the movement.

dealer_tick

The Game Tick event of the BP_Game_dealer must call to the Game Tick of all their beat spheres BP_Game_dealer_beat.

dealer_tick
BP_Game_dealer Event Tick propagation

The Game Tick of BP_Game_dealer_beat actors is only used to move the sphere

beat_game_tick
BP_Game_dealer_beat Event Tick alternative

With that call the event tick call chain is completed. The other part of the Event Tick of BP_Game is used to calculate the spawn of the beat actors. We have added a variable to remove the first seconds of the analysis, on a real-time analysis we can obtain false positives in this first seconds.

game_event_tick_2

We only want to spawn on beat on-set, so we need to add a variable to do this. When this variable is false and the beat analyzer returns a true we need to spawn a new sphere in their actor dealer.

beat_actions
beat_function

We need to add a cooldown time in the dealer actor to avoid to generate too much spheres in a short time and overlap beat spheres. We need to calculate and pass the modify parameters to the sphere, like the movement speed and the scale speed. We need to pass too the distance to the button zone. If the beat sphere overtake that position and the player doesn’t catch the beat we need to subtract some score and mark the beat to their destruction.

spawn_beat_sphere
BP_Game_dealer SpawnNewBeat function

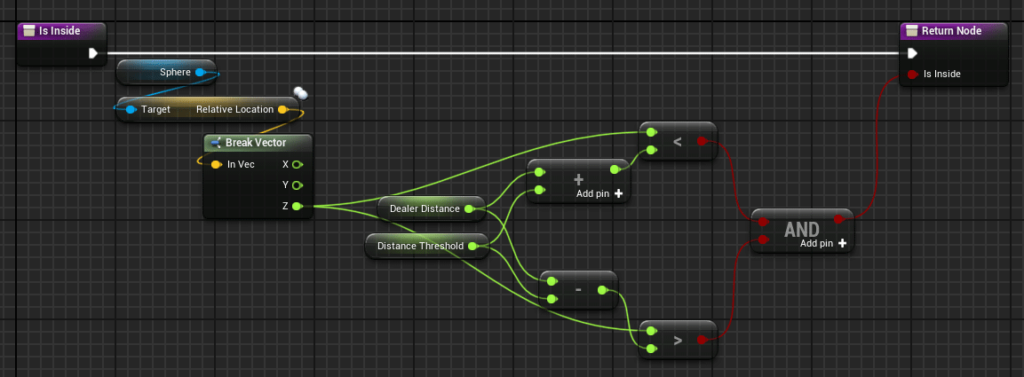

Tip: To check if the beat is inside the dealer button we need to add a threshold around the center point to allow some margin to the player capacity.

check_beat_inside
IsInside function

The player button is only a displaced cylinder in the BP_Game_dealer actor. The beat spheres will spawn in the origin point of the dealer actor and moved in the cylinder direction.

dealer_button_component

To capture the player mouse event we need to assign the input of the Player 0 to the actor using the Input property Auto Receive Input

In the Project Settings we need to enable the option Mouse Properties > Use Mouse for Touch, this option it is very useful if we want to develop a game for a desktop and a mobile environment.

Now we can link the event to our function to check the beat

touch_event

This function iterates over all their beat actors using their IsInside function to check if the beat is in the player button position.

check_beats_function

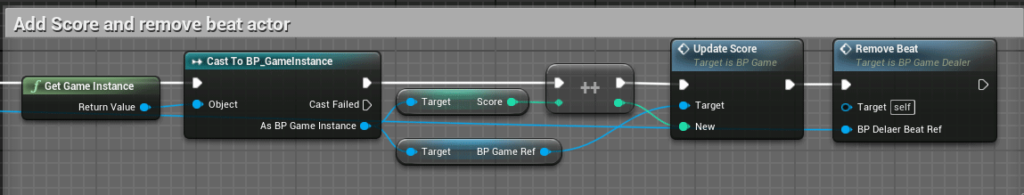

If the beat is inside the cylinder then the player has captured a beat and we will increase their score. We will remove and destroy this actor from the beat list of the dealer.

check_beats_function_2
remove_actor_beat

Now we have a very basic rhythm game working, we can do a more complex game from here adding more dealers and effects, a song selector, highscores panel…

youtube_video_rhythm

Tutorial files:

github

UE4 Project
